TFR Regenerative Receiver

Two Stage TRF Regenerative Radio

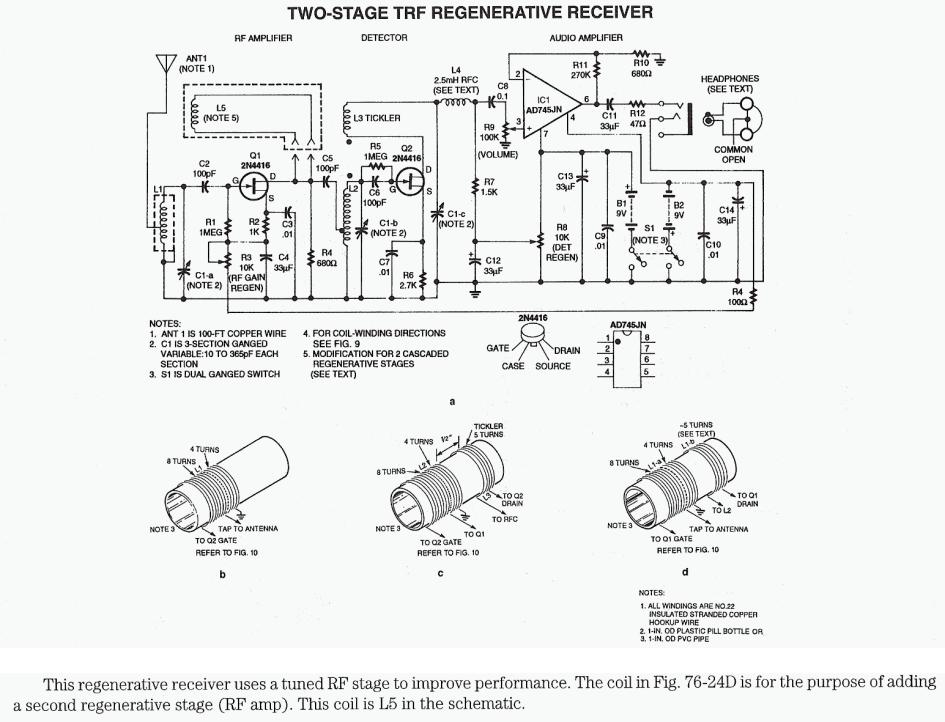

Figure 1081 : Two Stage TRF Regenerative Radio
