This is just a list of old schematics, some with a BOM, mostly used as a reference design resource. NOTE: There is no instruction on how to build any of this stuff. You must use your own wits (or just Google it!).
1 AM Modulation Monitor

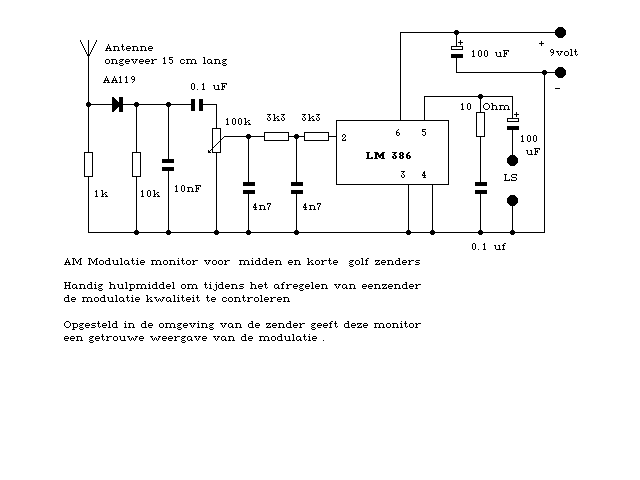

Figure 1012 : AM Modulation Monitor
