In the late 80s computer systems were changing to smaller and faster servers. Modem technology advanced and these slower modems became obsolete.
Gandalf Technologies Ltd. of Nepean were among the earliest and best known Canadian manufacturers of such products.
Technical Specifications:
- Year of introduction: the early 1980s
- Price: $1,300-$1,450
- Data Rate: 1200, 2400 bps
- Modulation Method: DPSK
- Transmission Mode: full duplex
- Synchronization: asynch/synch
- Calling Mode: orig/auto answer
- Diagnostics: analog, digital loopback
- Features: Bell 201 C and CCITT compatible; V.26 compatible
Additional Information:
I once serviced this equipment in the late 80s. This is the last of my mainframe stuff I'm trashing.
Today I noticed the frequency of the crystals. Oh wow!, I can re-purpose them for a QRP CW/Digital modes on the Top Band (160 Metre Band).
Guess what, I'm keeping it for parts now. My Wife will be upset, she thought I was cleaning out the basement. Ooops.
Gandalf SAM 201 Modem

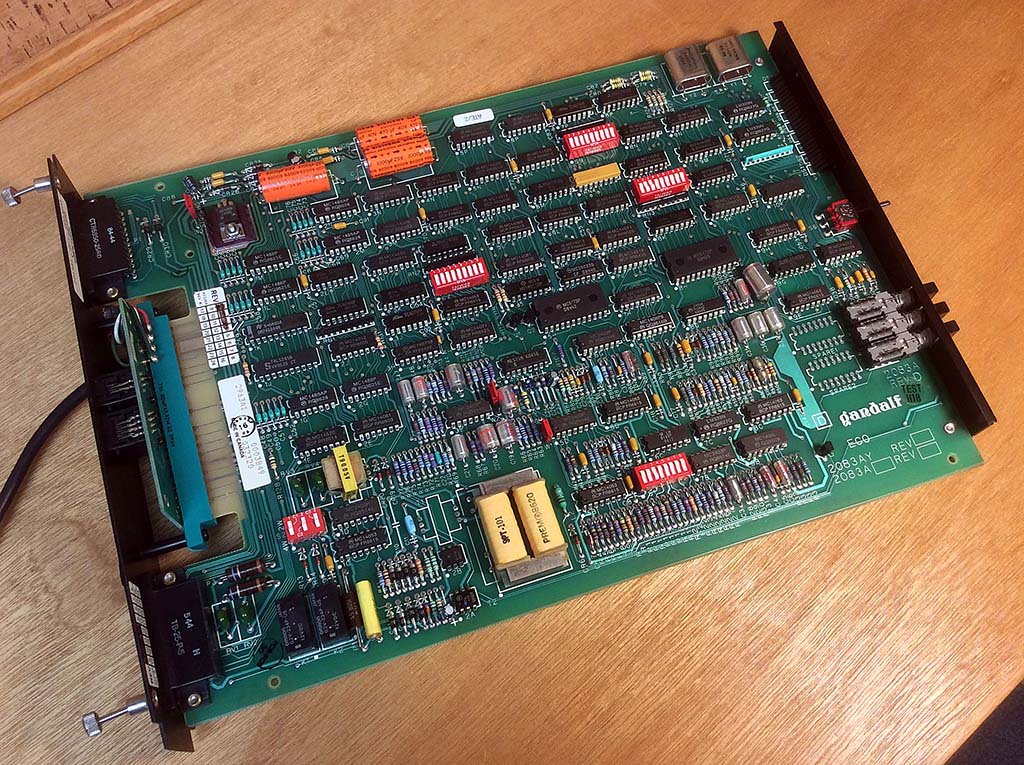

Gandalf SAM 201 Modem field view of circuit board

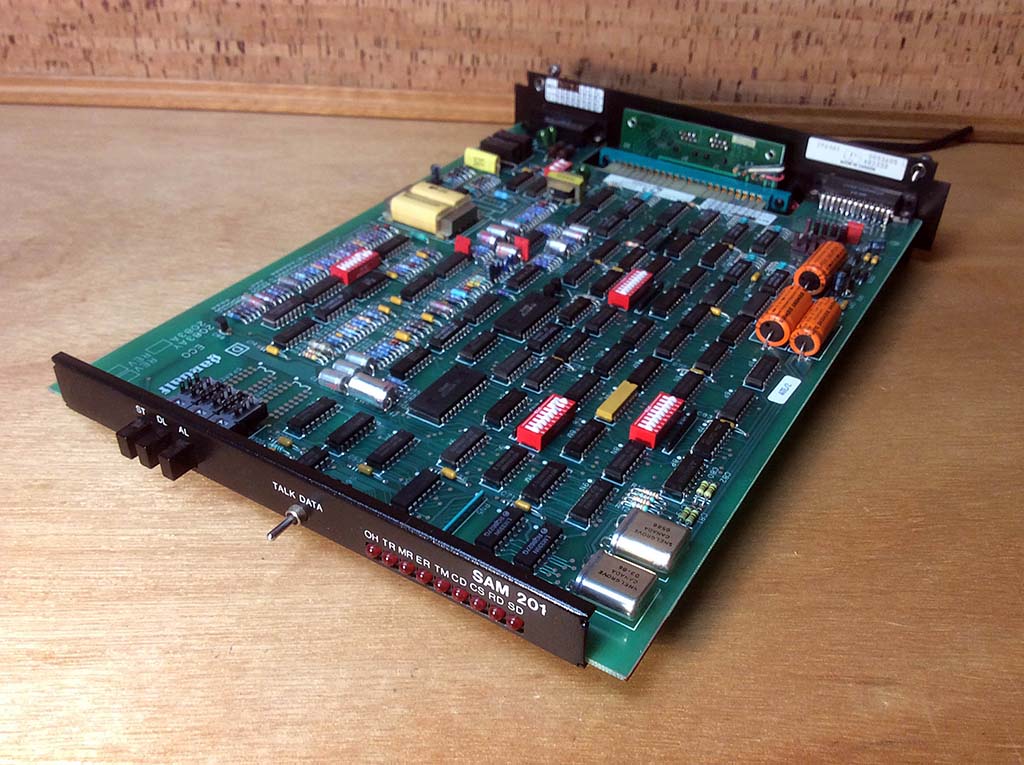

Gandalf SAM 201 Modem field view of circuit board
Gandalf SAM 201 Modem clock quartz crystals

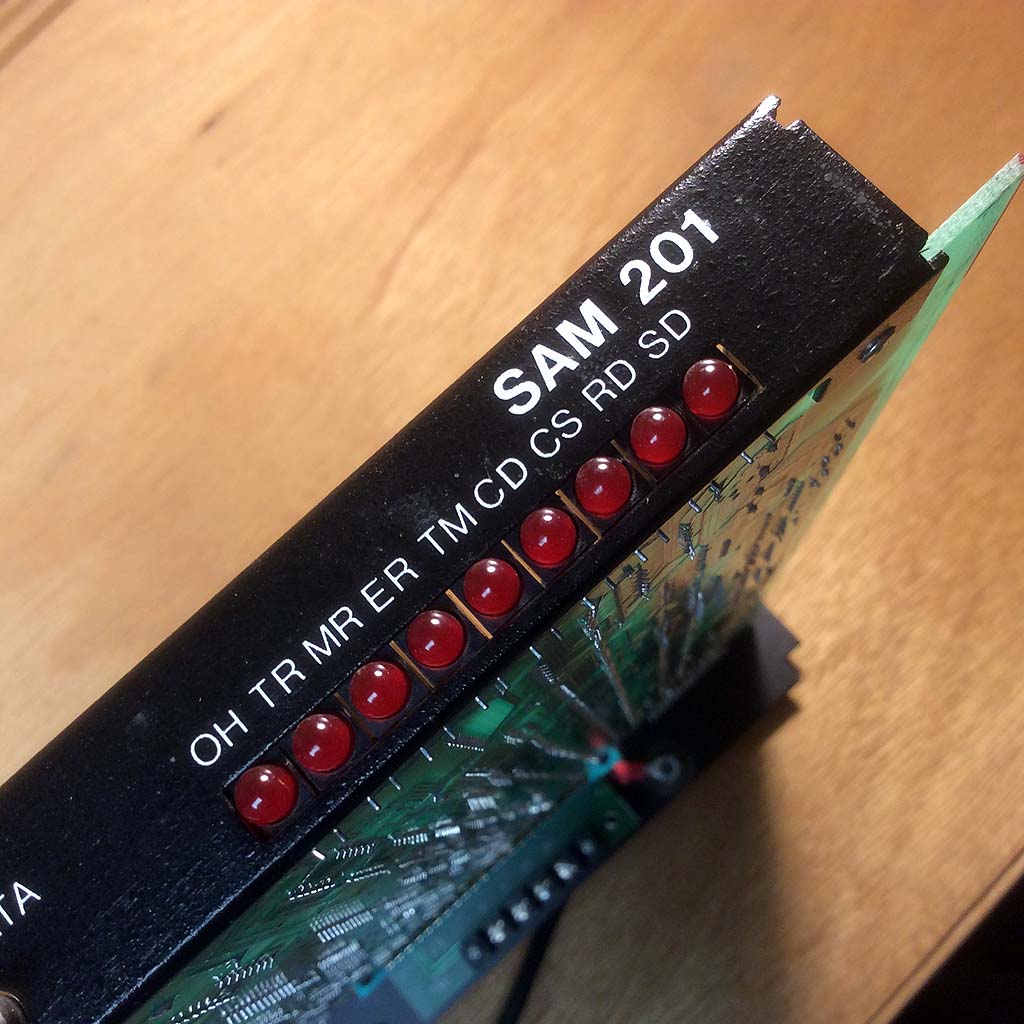

Gandalf SAM 201 Modem LED front panel
Gandalf SAM 201 Modem close-up of integrated circuits (chips)
Gandalf SAM 201 Modem printed circuit board traces
