Schematics and Circuits Index

A brand new different way to view the schematics.

This is just a list of old schematics, some with a BOM, mostly used as a reference design resource. NOTE: There is no instruction on how to build any of this stuff. You must use your own wits (or just Google it!).

Index High-pass Filters

1
High-pass Filters

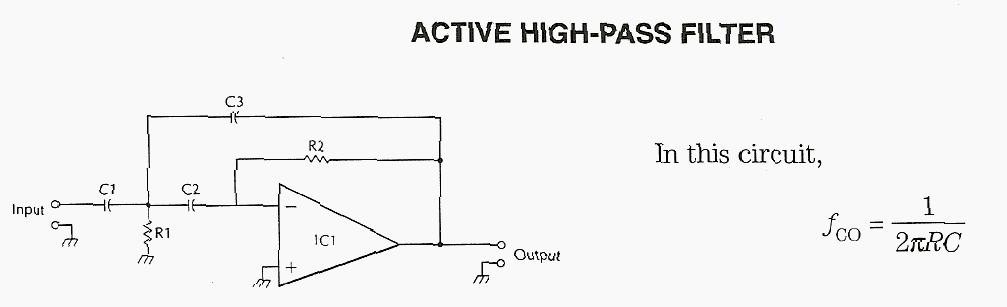

Active High-pass Filter

Figure 901 : Active High-pass Filter

2
High-pass Filters

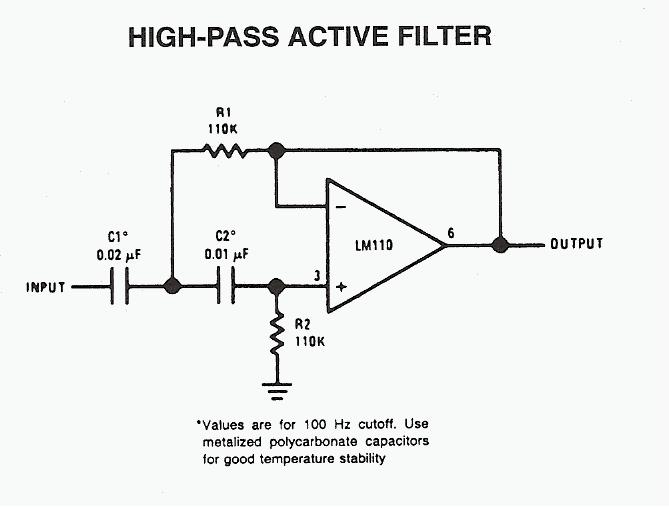

High-pass Active Filter

Figure 975 : High-pass Active Filter

3
High-pass Filters

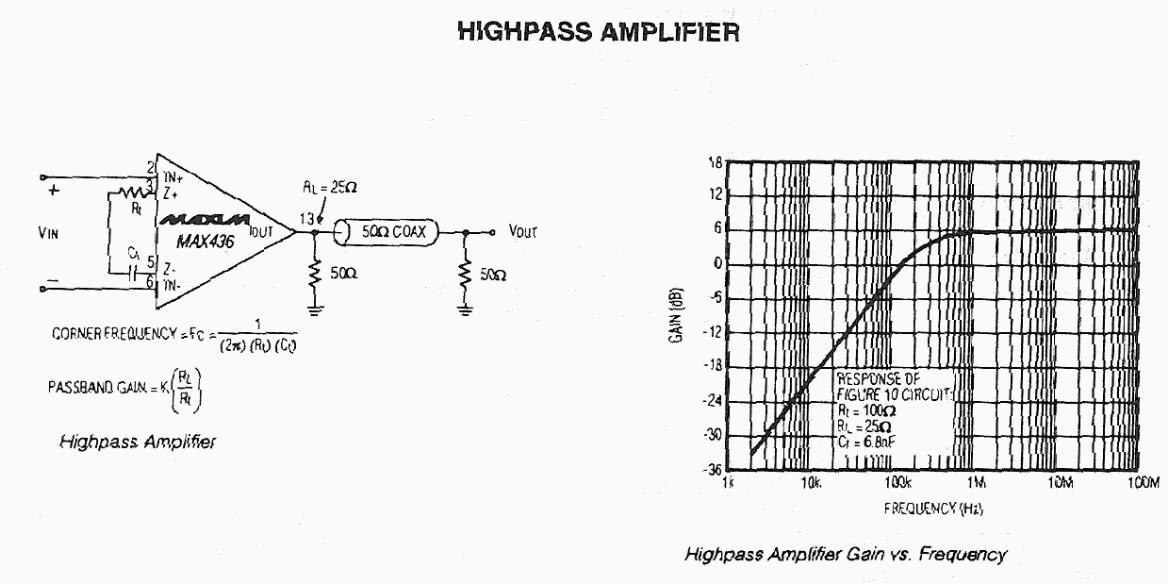

High-pass Amplifier

Figure 979 : High-pass Amplifier

4
High-pass Filters

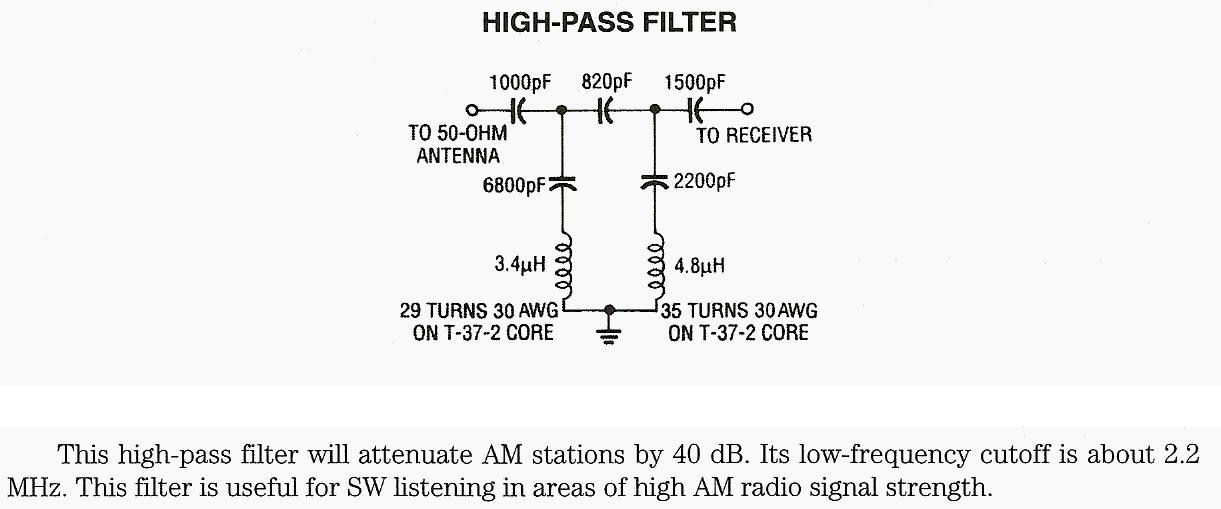

High-pass Filter

Figure 978 : High-pass Filter

5
High-pass Filters

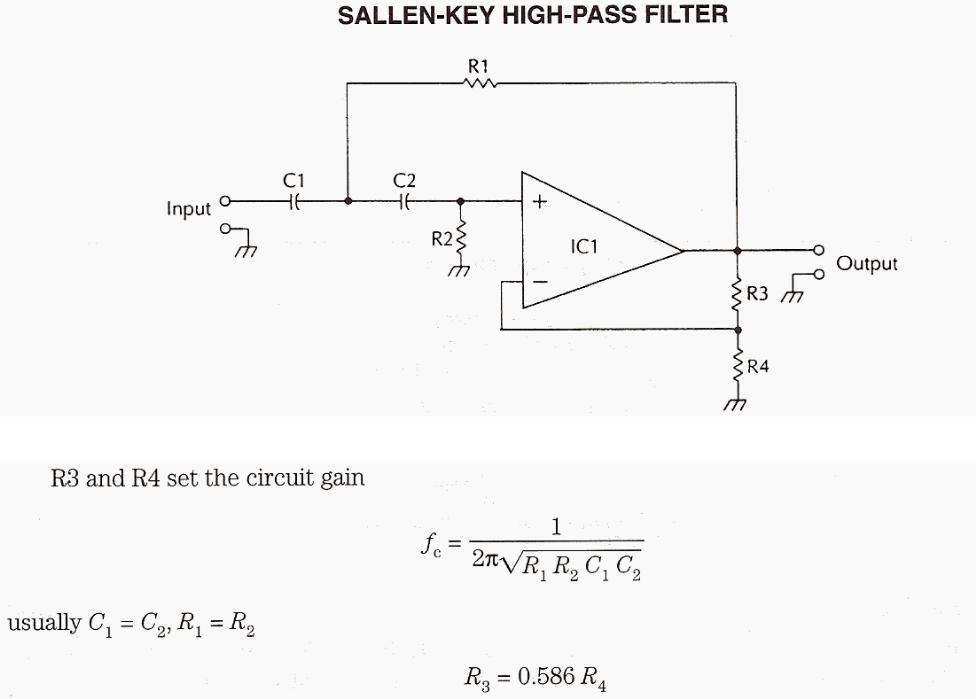

Sallen-KEY High-pass Filter

Figure 1054 : Sallen-KEY High-pass Filter
