AVO Mutliminor Mk.4
AVO Mutliminor Mk.4
AVO Mutliminor Mk.4
AVO Mutliminor Mk.4
AVO Mutliminor Mk.4
Multi-range test meter remarkable for the wide range of test facilities which have been incorporated.

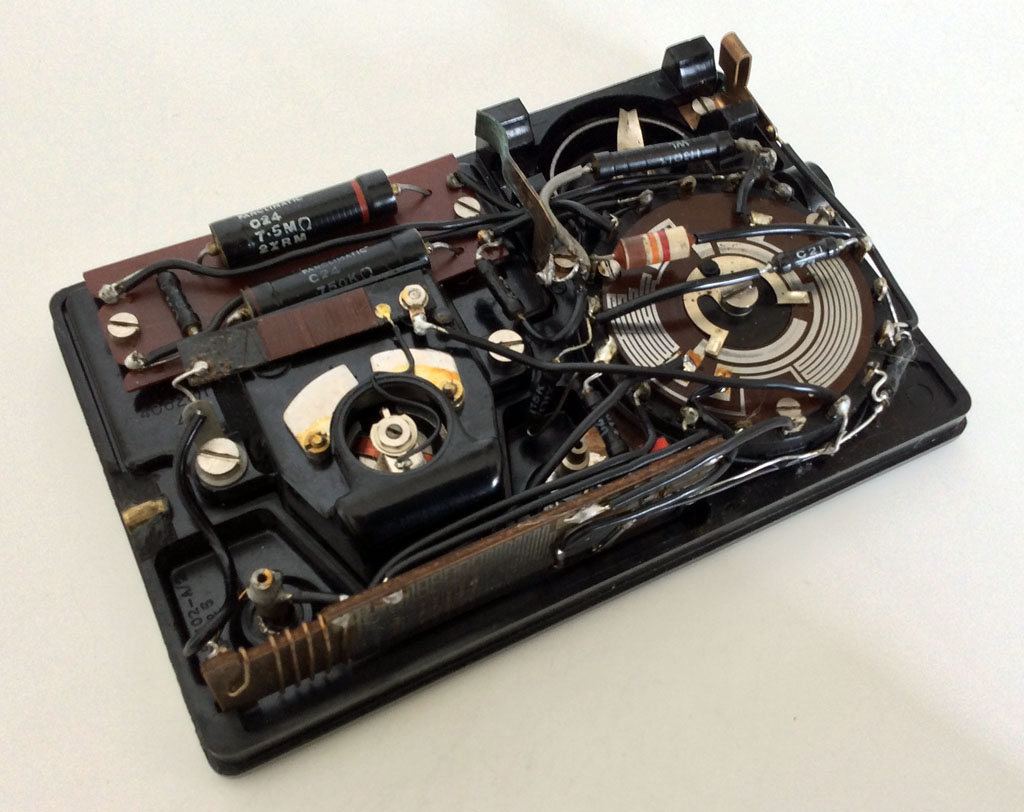

Full advantage has been taken of printed resistor techniques to produce a compact instrument of low weight. It features composite printed resistors and robust range switch similar to that used in the full size Avo Meters.
Eighteen fixed silver plated contacts embedded in a ring of high-grade moulding material are swept by a double contact rotor arm. Meter movement is enclosed to give protection against the infiltration of dust.

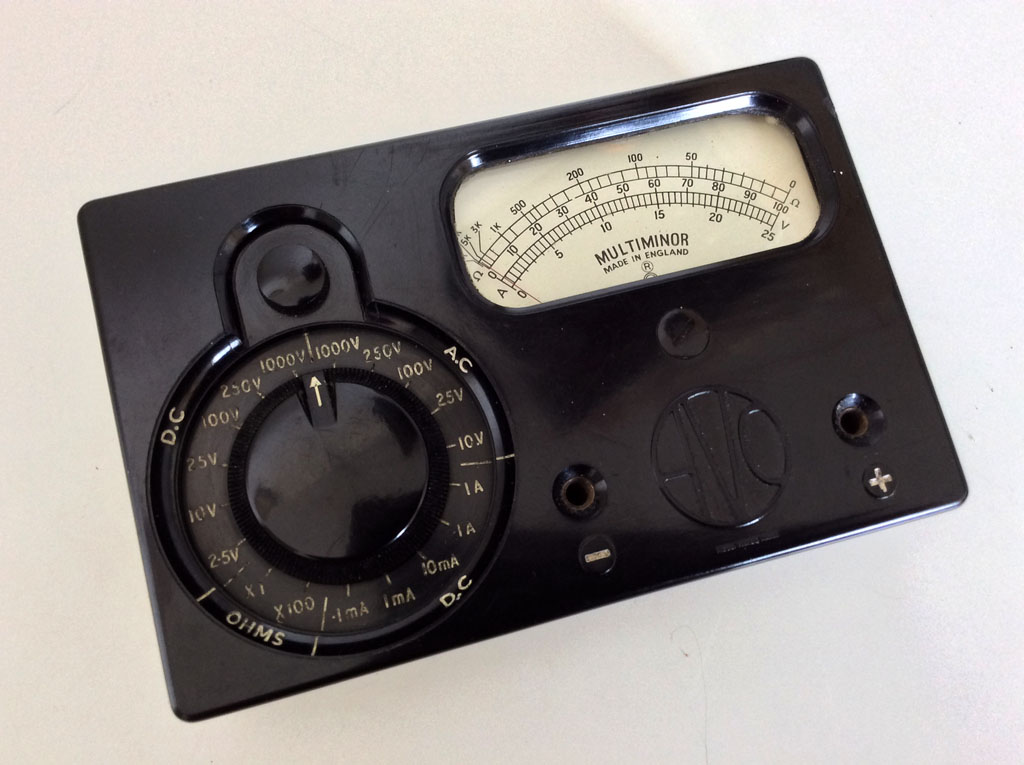

Single Knob Control with 19 Ranges:
- 7 D.C. Voltage Ranges: 0-1,000 V. 5 A.C. Voltage Ranges: 0-1,000 V.
- 5 D.C. Current Ranges: O-1A.
- 2 Resistance Ranges: 0-20,0000ohm 0-2Mohm
Sensitivity:
- 10,000 ohms/V on D.C. voltage ranges.
- 1,000 ohms/V on A.C. voltage ranges.
Accuracy:
- 3% of full scale value on D.C.
- 4% of full scale value on A.C
